Tektronix

Tektronix A6303 Current Probe, AC/DC, 100 A, 15 MHz, 600 V, CAT2, 21mm, 500 A, 2m

Part #10828.4

Condition:Used

MFG #A6303

Certified Pre-Owned

Tektronix

Tektronix A6303 Current Probe, AC/DC, 100 A, 15 MHz, 600 V, CAT2, 21mm, 500 A, 2m

Part #10828.4

Condition:Used

MFG #A6303

€

Qty:

Description
Attributes
Documents

Description

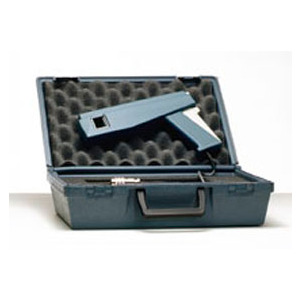

Tektronix A6303 AC/DC Current Oscilloscope Probe

Features and Specifications

2 Meter Cable
100 Amps Continuous / 500 Amps Peak
DC to 15 MHz
Up to 0.83 in. Conductor Diameter

The A6303 is a DC to 15 MHz current probe designed for use with the AM503 family of current probe amplifiers and the 11A16 plug-in. The A6303 can measure currents to 100 A (DC + peak AC), and up to 500 A peak current (while not exceeding the amp-second rating).

What's in the Box

Instruction Manual

Attributes

Brand: Tektronix

Maximum Current: 100 A

Input Coupling: AC/DC

Bandwidth: 15 MHz

Max Input Voltage: 600 V

Safety Rating: CAT2 | CAT3

Cable Length: 2 m

Quote Required: No

Dimensions: 10.6 x 1.6 x 6.13 in.

Maximum Wire Size: 21 mm

Peak Current: 500 A

Risetime: 23 ns

Documents

Tektronix A6303 Current Probes Instructions

€
